Granular flows are widespread in nature and industry, yet poorly understood. Discrete particle simulations offer detailed insight into their behaviour, but only provide properties of the individual particles, such as velocity and force. To obtain bulk flow quantities relevant to science and engineering, such as pressure or strain rate, we employ a mathematical framework called Coarse-Graining (CG).

Pysammos is a Python package designed with the aim of providing a user-friendly CG workflow to post-process data from the MFiX open-source DEM software, and provide a streamlined visualisation in widely-used open-source visualisation software, ParaView. This code package provides flexibility in the output variable selection, mesh parametrisation, and data analysis of the obtained results. Pysammmos is also designed to invite geoscientists to incorporate DEM in their research, as many processes studied in geosciences involve discrete elements that are currently modelled as a continuum could benefit from a discrete insight. Similarly, to enhance DEM analysis by extracting continuum fields without the need to handle inner-level source code. The efficient algorithmic complexity exhibited by Pysammos avoids the requirement of extensive computational resources, making it a programme that can be ran on at the same time as other processes.

Features:

  • Processes MFIX-DEM simulation data

  • Processes particle data of any shape and size distribution

  • Customisable coarse-graining mesh

  • Outputs continuum fields in vtkhdf format for Paraview visualisation and in h5 format for data analysis

  • Benchmarked against other open-source and commercial CG codes

  • Open-source and free to use

The code is available on GitHub: https://github.com/Claudia-Elijas/pysammos

pysammos logo

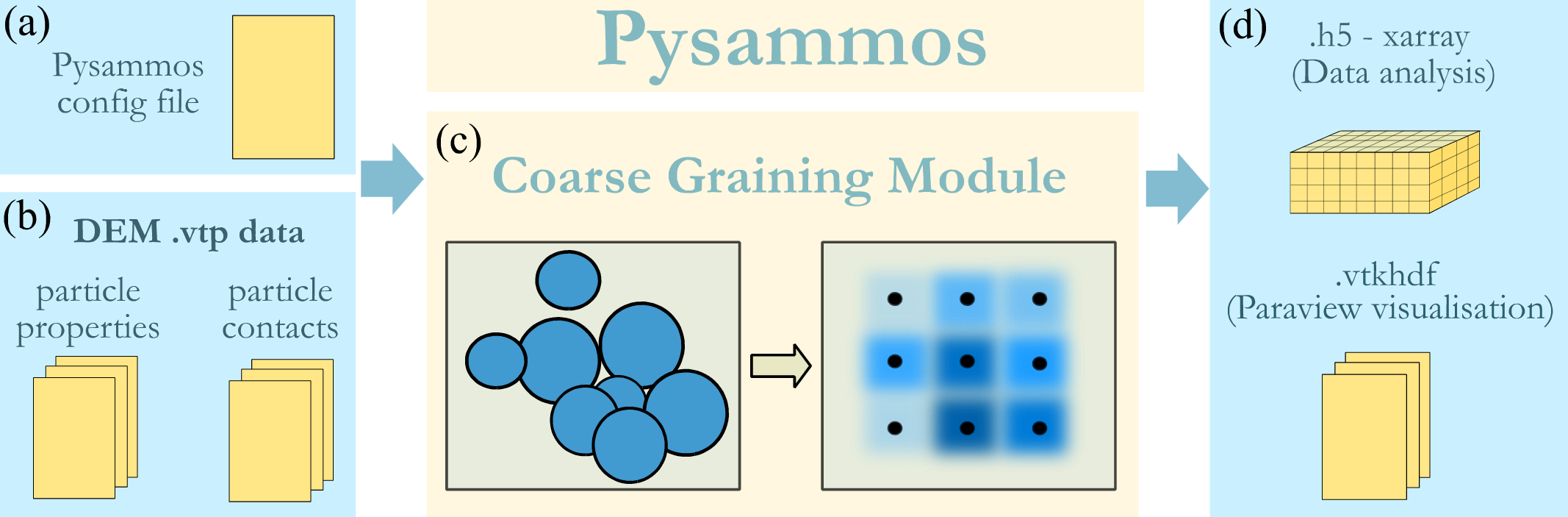

An overview of Pysammos Conceptual diagram of the code's main functionality (c), types of input (a, b), and output (d).


Who was the Sand Reckoner?

The Sand (psammos, in greek) Reckoner is a work by Archimedes, in which he endeavoured to determine the number of grains of sand that could fit in the universe. To do so, he invented a new system of large number notation, as the number system at that time could only express numbers up to a myriad (10,000). Our open source code is able to process any granular model in the universe no matter the number of grains! In fact, the more, the myriar.

sand reckoner logo

Contents

Project Information

Funding

This project has received funding from the NERC Edinburgh Earth Ecology and Environment Doctoral Training Partnership grant NE/S007407/1.

Collaborators

This project has been developed with the contribution of the following collaborators:

  • Dr. Eric C. P. Breard (University of Edinburgh)

  • Dr. Mark Naylor (University of Edinburgh)

  • Dr. John P. Morrissey (University of Edinburgh)

  • Dr. Patrick J. Zrelak (University of Edinburgh)
